Wire Cloth

Wire Cloth has a large list of uses and the quality is a key component for longevity of use.  Lawrence Sintered Metals offers top-quality wire cloth to your specifications for your project.  We can customize what you need for your wire cloth needs.  Contact us with your specifications on your next project.

CALENDERED WIRE CLOTH. Wire cloth that has passed through a pair of heavy rollers to reduce the thickness of the fabric, or to flatten the intersection to provide a smooth surface.

CLEAR OPENING (also Space). Space between adjacent parallel wires.
OPENING (Space). Clear opening between adjacent parallel wires; Not affected by diameter of the wire.

COUNT (also Mesh). Number of openings in a linear inch.

CRIMP. Corrugations in wires to permit locking them into place when perpendicular to each other.

DOUBLE CRIMP. Wire pre-crimped prior to weaving; Warp and shute wires lay in each crimp.

DOUBLE INTERMEDIATE CRIMP. Usually the warp wires lay in every crimp in the shute wires, and the shute wires lay in every crimp in the warp wires.

FILL WIRES (also Shute Wires). Wires running across the width of the cloth as woven.   Here are some examples of wire cloth.   We offer more sizes and types and you can see on our Wire Mesh Specifications.

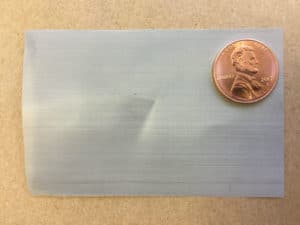

400x400 Mesh .0011" Wire .0014" Opening 31.4% OA

400×400 Mesh .0011″ Wire .0014″ Opening 31.4% OA

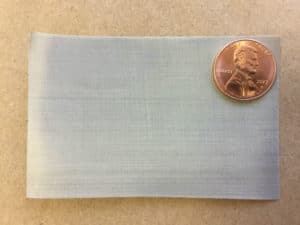

325x325 Mesh .0014" Wire .0017" Opening 30.5% OA

325×325 Mesh .0014″ Wire .0017″ Opening 30.5% OA

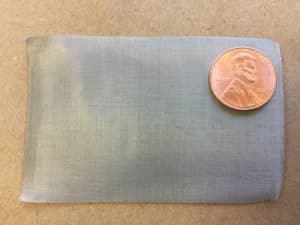

250x250 Mesh .0016" Wire .0024" Opening 36.0% OA

250×250 Mesh .0016″ Wire .0024″ Opening 36.0% OA

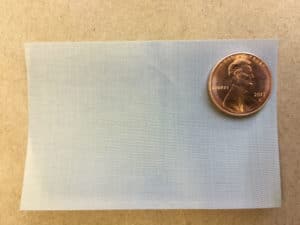

200x200 Mesh .0021" Wire .0029" Opening 33.6% OA

200×200 Mesh .0021″ Wire .0029″ Opening 33.6% OA













GAUGE. Wire size. To avoid possible errors, specify wire diameter in decimal sizes rather than gauge numbers.

INTERMEDIATE CRIMP. Warp and shute wires lay in every other crimp.

LONG SLOT. Weave where shute wires are arranged in clusters to provide rectangular openings.

MARKET GRADES. Most commonly used sizes of industrial wire cloth specifications selected for general purpose work.

MESH. Number of openings in a linear inch measured from the center of one wire to a point 1″ distant.

MICRONIC MESH. A woven filter cloth with a nominal micron rating as low as 2.0 with excellent flow characteristics.

OPEN AREA. The proportion of open space in a total screen area; Expressed as a percentage.

PLAIN WEAVE. Each warp wire and shute pass over one and under the next adjacent wire; Wires are crimped in the weaving operation.

PLAIN DUTCH WEAVE. Warp wires are generally larger than the shute wires. Shute wires are closely spaced to provide a dense weave with wedge shaped openings.

RECTANGULAR OPENINGS. Long dimension of an opening can be specified as parallel or perpendicular to the length.

REVERSE DUTCH WEAVE. Woven in which the larger count of wires is found in the warp and the smaller count in the shute, thus reversing the method used in plain and twilled Dutch weaves.

SELVAGE. Finished edges running the length of the roll to prevent unraveling.

SHUTE WIRES. Wires running across the width of the cloth as woven.

SQUARE MESH. Wire cloth with mesh count the same in both directions.

TWILLED WEAVE. Each warp wire and each shute wire pass successively over two and under the next adjacent pair of wires.

TWILLED DUTCH WEAVE. Same as twilled Dutch except the shute wires are smaller and overlap, thus increasing the number of shute wires in a linear inch to provide greater density.

WARP WIRES. Wires running the length of the cloth as woven.

WELDED WIRE CLOTH. Warp and shute wires lay flat (no crimp); Welded at intersections.
